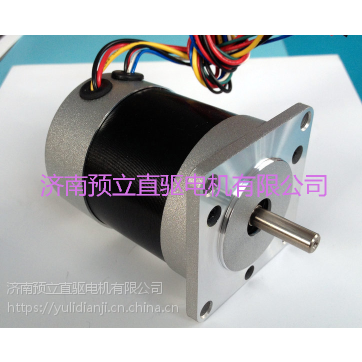

| 品牌：预立 | 产品类型：无刷直流电动机 | 型号：42BL系列 |
| 极数：8极 | 额定功率：50W | 额定电压：24V |
| 额定转速：3000rpm | 应用范围：金相设备 |
型号Model | 42BL45-240 | 42BL60-240 | 42BL80-240 | 42BL100-240 |
极数Number of Poles | 8 | |||
相数Number of Phases | 3 | |||
额定电压 Nominal voltage VDC | 24 | |||
额定转速 Rated speed RPM | 4000 | |||
额定扭矩 Rated Torque N-m | 0.0625 | 0.125 | 0.185 | 0.25 |
额定电流 Rated Current Amps | 1.8 | 3.5 | 5.2 | 6.6 |
输出功率 Output Power Watts | 26 | 52 | 78 | 105 |
峰值扭矩Peak Torque N-m | 0.18 | 0.38 | 0.55 | 0.75 |
峰值电流Peak Current Amps | 5.4 | 10.5 | 15.6 | 20 |
力矩常数 N-m/A | 0.035 | 0.036 | 0.036 | 0.0376 |
反电势常数 Back EMF V/k RPM | 2.45 | 2.71 | 2.74 | 2.62 |
转动惯量 Rotor inertia g·cm? | 24 | 48 | 72 | 96 |
电机长度Body Length (L) mm | 45 | 60 | 80 | 100 |
重量 Mass kg | 0.33 | 0.45 | 0.65 | 0.8 |
